Ego vs. Authenticity

A Simple Problem and a Cheap Camera

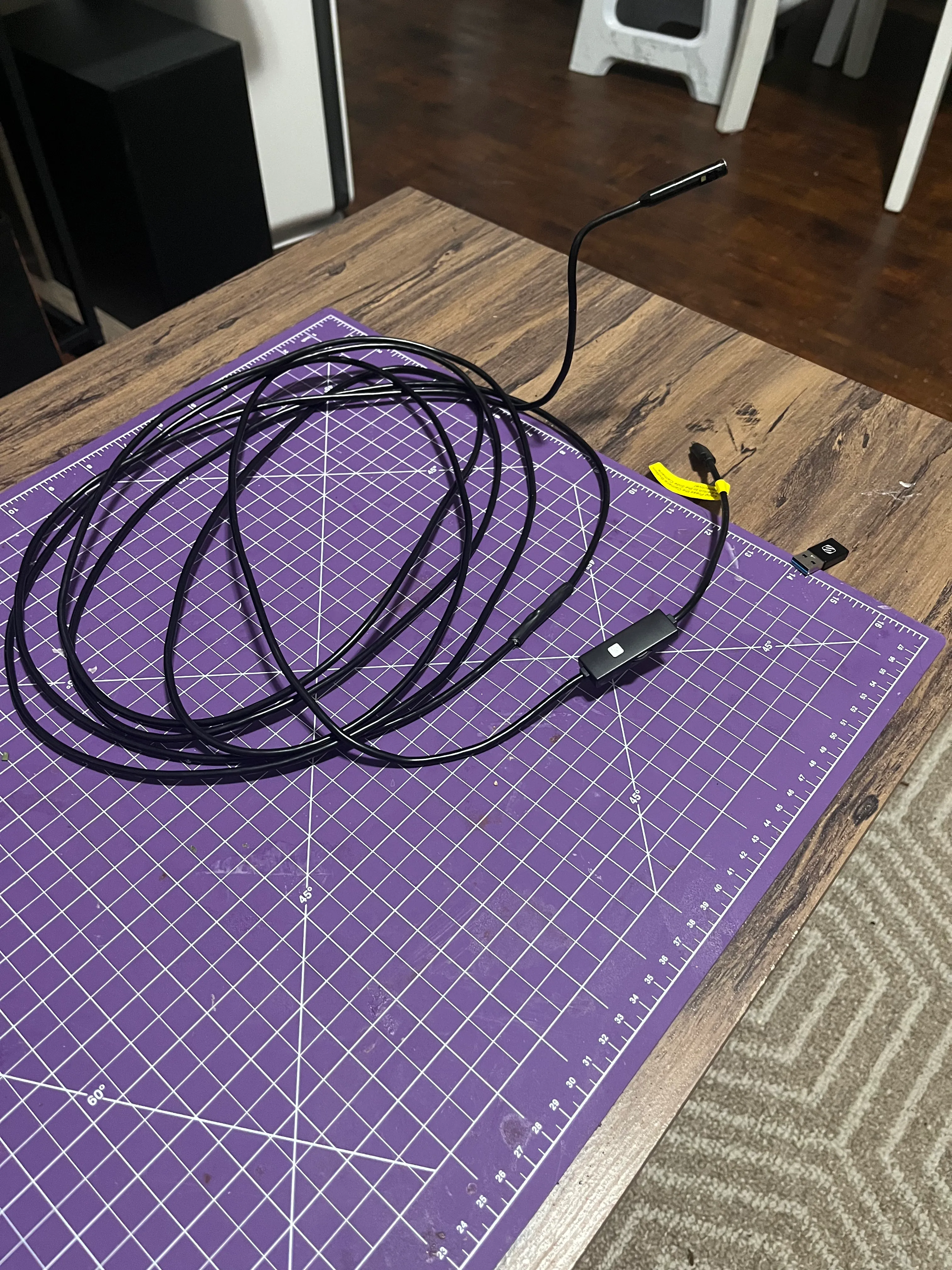

I ran into rotating assembly clearance issues during my NifeliZ L6 Model Engine build. To get a good look at the clearance issues, I ordered the Kinpthy Endoscope Camera from Amazon for $50 CAD. The endoscope worked pretty well, for the price. Below is a picture of the endoscope along with a sample video to see the quality.

---

---

---

Curiosity Killed the Cat

I got curious about whether the endoscope would work as a webcam on my Mac. I tried plugging the endoscope into my Mac and my Raspberry Pi. I tried using the borescope as a webcam, but neither my Mac nor my Raspberry Pi could stream video from it.

Then I googled how to get this borescope working on a Mac or Raspberry Pi. Video 4 Linux seemed like the most viable option; however, I could not get Video 4 Linux to work with the camera either.

Then I googled how to make the borescope work with Video 4 Linux. That led me to the GitHub projects Endoscope Camera by jmz3 and Geek szitman supercamera by hbens. The “Endoscope Camera” project is a video streamer for the endoscope, based on the work of hbens in the “Geek szitman supercamera” project. The “Geek szitman supercamera” contains a proof of concept OpenCV application that decodes the custom Useeplus protocol stream from the endoscope using LibUSB.

Prototyping and Domain-Driven Design

I wanted to see if I could get a prototype working on my Raspberry Pi. I cloned both repos, then started building my own project based on geek-szitman-supercamera/supercamera_poc.cpp.

Setting up the build tools and installing the dependencies took a bit of doing, but I managed to get my own working prototype. Then my software refactoring instincts kicked in, and I started reworking the code.

That refactoring exercise evolved into a highly focused, one-month sprint. While hbens had done the foundational work of reverse-engineering the base protocol, I dove into expanding it. By disassembling the camera’s Android JNI libraries, I figured out how to command the camera into higher, undocumented resolutions (like 1280x960) and handle the hardware’s tendency to pad its 4KB memory pages with stale, uninitialized data.

Instead of just porting the code, I applied Domain-Driven Design (DDD) concepts to model the actual physical and digital boundaries of the system. I enforced strict naming conventions, explicitly requiring layer prefixes—like usb_frm at the link layer versus video_frm_frag at the presentation layer—to avoid ambiguity and make the codebase highly accessible to a hobbyist reading the code on a Raspberry Pi. I engineered the system for performance, architecting a zero-allocation steady-state pipeline, implementing an LMAX Disruptor lockless ring buffer, and utilizing custom bpftrace scripts to hunt down rogue memory allocations and pinpoint URB completion bottlenecks.

But while I acted as the Principal Architect, I used Google Gemini Pro as my junior developer for the grunt work. I relied heavily on AI to translate my logic into the specific Video4Linux (V4L2) and VideoBuffer2 (VB2) kernel APIs. I used it to iterate rapidly through Zig cross-compilation errors, automate the Makefiles, and polish the syntax until checkpatch.pl, clang-tidy, IWYU, and cppcheck ran perfectly clean, and all v4l2-compliance tests passed.

I published this work under an MIT license on GitHub: github.com/jerometerry/useeplus repository.

Patch Anxiety

The AI kept pushing me to create the official patch, telling me it was ready for review. I have to disagree, Gemini.

I’ve never done any Linux Kernel development before, so building a V4L2 driver was a steep learning curve. I relied on AI substantially to navigate the specifics of the kernel macros and subsystems. Because I leaned on AI to bridge my specific knowledge gap in V4L2, I don’t feel comfortable that I know the kernel-side API deeply enough to submit this driver as an official patch.

I considered creating a patch, but decided against it. I don’t want to take on the responsibility of maintaining an official Linux driver. Working with long-time Linux Kernel developers who have to thoroughly review my patch made me feel uncomfortable after having done a V4L2 crash course in just one month. I blindly accepted some of the AI’s V4L2 recommendations just to appease the v4l2-compliance tools, but passing tests isn’t the same as understanding the kernel-level memory management implications. I would need to be able to answer reviewers’ questions with confidence before I ever consider putting forward a patch, and I don’t want to rely on AI to answer them for me.

The code might be ready, but I’m not. The thought of putting this work forward for review made me very nervous and anxious. At first, I thought it was my insecurities of being judged by Linux kernel developers for how crappy my code was. That was just the story I was telling myself.

What I believe now is that my body was telling me I wasn’t ready, that this kernel-level translation was mostly AI’s doing, and I can’t stand behind it because I don’t know it well enough at a deep, fundamental level. I was letting my ego pump itself up for having pushed through a one-month sprint to build a highly performant prototype, while getting carried away thinking that four weeks of API exposure somehow made me a kernel expert.

I was simultaneously insecure about my work and overconfident in my expertise. I was envisioning the Linux Maintainers as overly picky, brutal reviewers as a way of avoiding what my body was trying to tell me. I used AI to build a prototype. It was fun. The architecture is mine, and it is done to the best of my abilities. Yet that isn’t enough to justify a patch. If I had put forward a patch, I would have been a nervous wreck, but I would have been misattributing my nervousness as a fear of the reviewers’ criticism, instead of to my inner struggle to try and prove myself and get validation by having code merged into the Linux Kernel.

Authenticity

It would not be authentic for me to put my work forward with my current level of knowledge. The code may or may not be up to the standards of the Linux Kernel. That isn’t the point.

While I can speak confidently about the overarching C++ architecture, the zero-allocation pipeline, and how my domain-driven design expands on hbens’s protocol decoding, I cannot definitively defend the nuanced design choices within the V4L2 and VB2 implementations.

If a maintainer asked why I used a full memory barrier (smp_mb__after_atomic()) in the teardown sequence instead of a simple spinlock, or why I set the URB_NO_TRANSFER_DMA_MAP flag for the USB request block allocations, my honest answer would be “because the AI told me to.” If they asked why my driver advertises V4L2_CAP_TIMEPERFRAME but hardcodes the VIDIOC_G_PARM ioctl response to a static 30 FPS just to make the v4l2-compliance test turn green, my answer would be “to pass the test, not to bind the hardware clock.” That is not an acceptable answer on the Linux Kernel Mailing List.

By keeping it on GitHub under an MIT license rather than forcing a kernel patch, I’m hoping to pass the baton. It’s out there for someone who does have the deep foundational expertise—and the desire—to take this architectural prototype and publish an official Video4Linux2 driver for Useeplus cameras.
